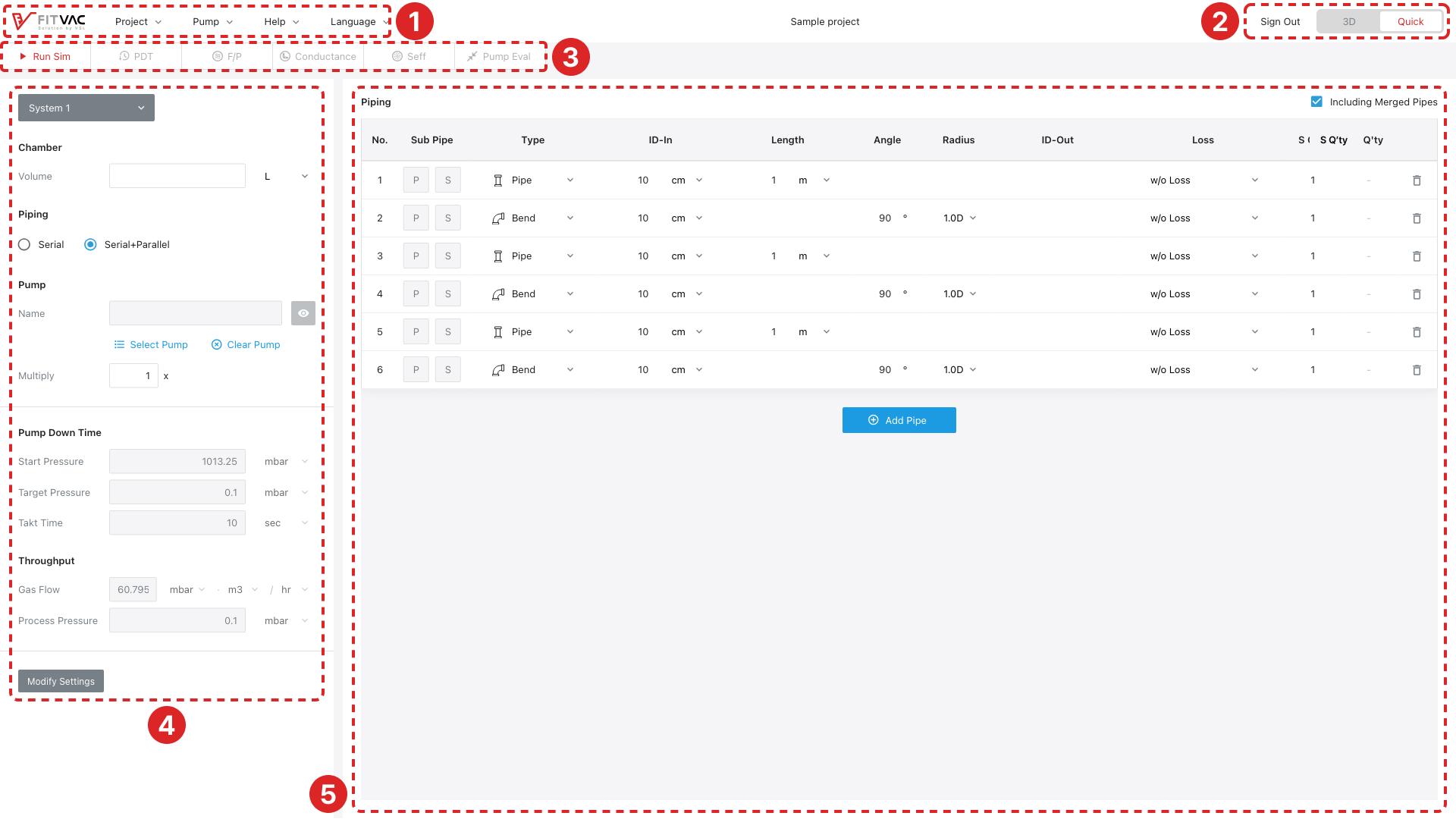

Quick Mode Screen Layout
- Main Menu
- Main menu to use program
- Sign out & Toggle between 3D mode / Quick mode
- Project Menu
- Setting and Functions for project
- System Settings
- Area to enter values for chamber, pump and set the PDT, F/P requirements
- Piping Configuration
- Area to enter values for pipings
Main Menu
| Menu | Description | |
|---|---|---|
| Home | (FitVac™ logo) | Move to FitVac™ website |
| Project | New… | Create a new project |
| Open… | Open & manage the projects | |
| Save | Save current project | |
| Import… | Import the project file (.ftv) | |
| Export | Export the project file (.ftv) | |
| Import PCF Piping File… | Import the piping file (.pcf) | |
| Export to PCF Piping File | Export to piping file (.pcf) | |
| Simulation Report | Simulation results data of system | |
| Pump | Manage Pump… | Manage the pumps |
| Manage Pump Data… | Manage the pump datas | |
| Pump Digitizer… | Create a pump data from the pumping speed chart image | |
| Help | (Version) | FITVAC™ Solution version |
| (Plan name) | Plan name current using | |
| User Manual | Open user manual | |
| Language | Change display language | |
Sign out & Toggle between 3D mode / Quick mode
- Sign out button
- Toggle between 3D mode / Quick mode
Project Menu
| Menu | Description |
|---|---|
| play_arrow Run Sim | Run the system simulation |
 PDT |
Run pump down time simulation |
 F/P |
Run throughput simulation |
| electric_bolt Conductance | Run pipe conductance simulation |
 Seff |
Run effective pumping speed simulation |
 Pipe Eval |
Run pipe evaluation |
| close_fullscreen CapaScan™ or close_fullscreen Pump Eval | Run CapaScan™ or pump capacity evaluation |
- Pump Eval is available on the Plus plan and above, while CapaScan™ is available on the Optimum plan and above
System List
- The number of available systems varies depending on your plan (Single: 1, Twin: 2, Plus: 3, Optimum: 6)
- Click the "delete" button to delete system
- System deletion is only available on Optimum plan, and System 1 cannot be deleted
- Click the play_arrow Run Sim button to activate project menu → See Start Simulation
