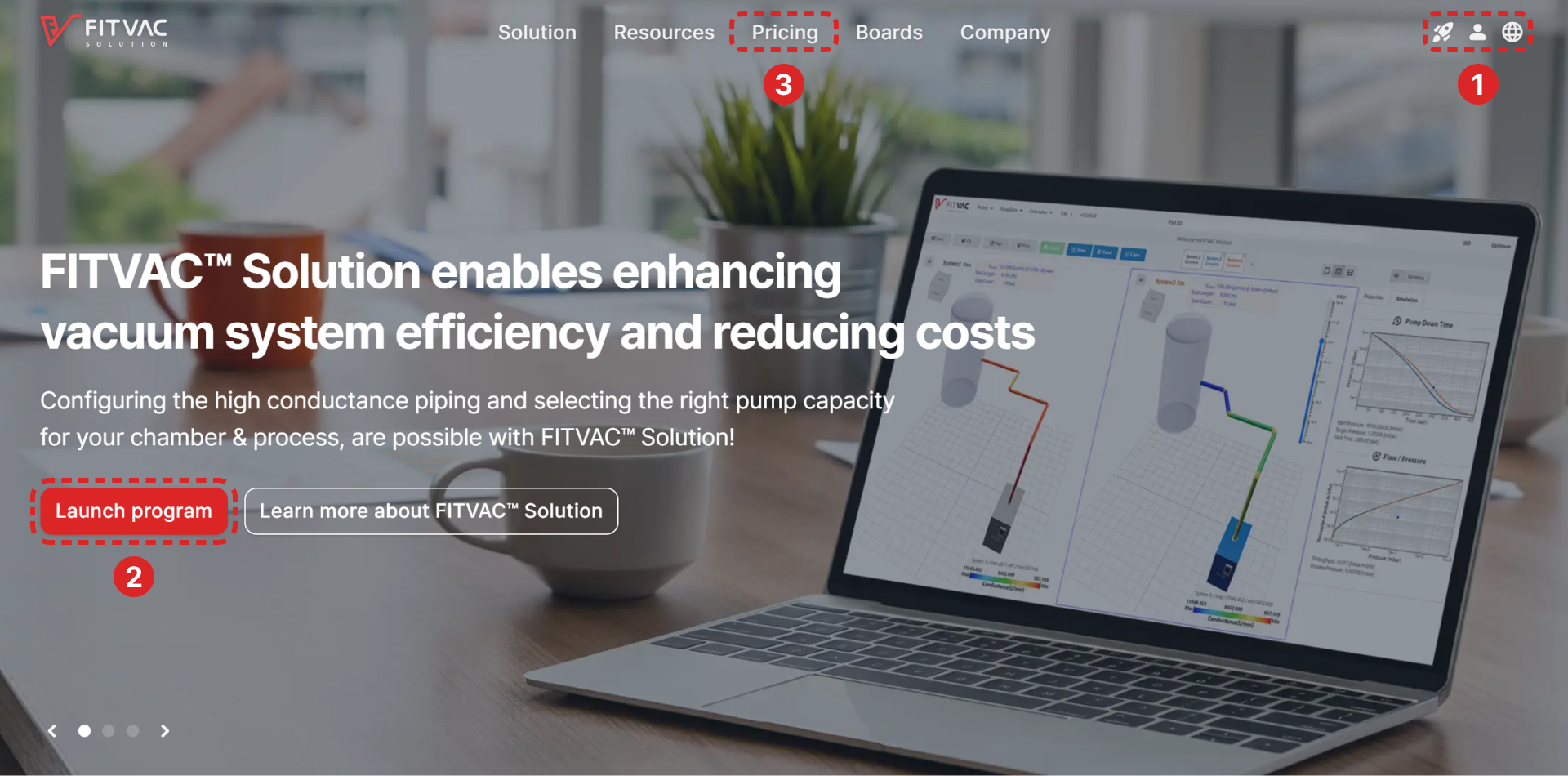

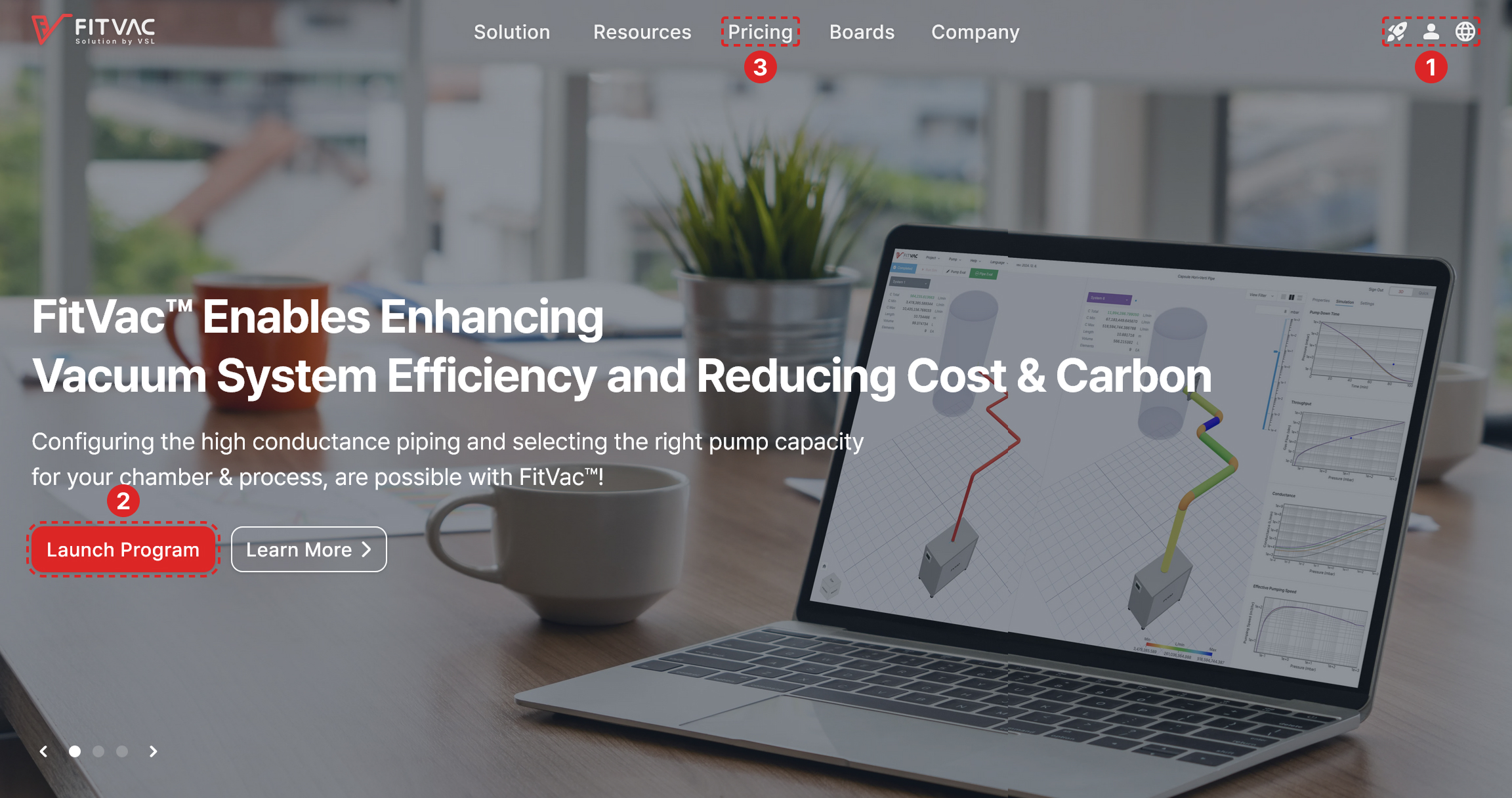

Program Start
- Launch program, website sign in (Sign in, Sign up), select language (English, Korean)
- If not signed in or no plan is being subscribed, the "rocket_launch" button is not visible.
- Click the "Launch program" button to start program
- If no plan is being subscribed, the "Launch program" button is not visible.
- If no plan is being subscribed, you can subscribe on the Pricing page

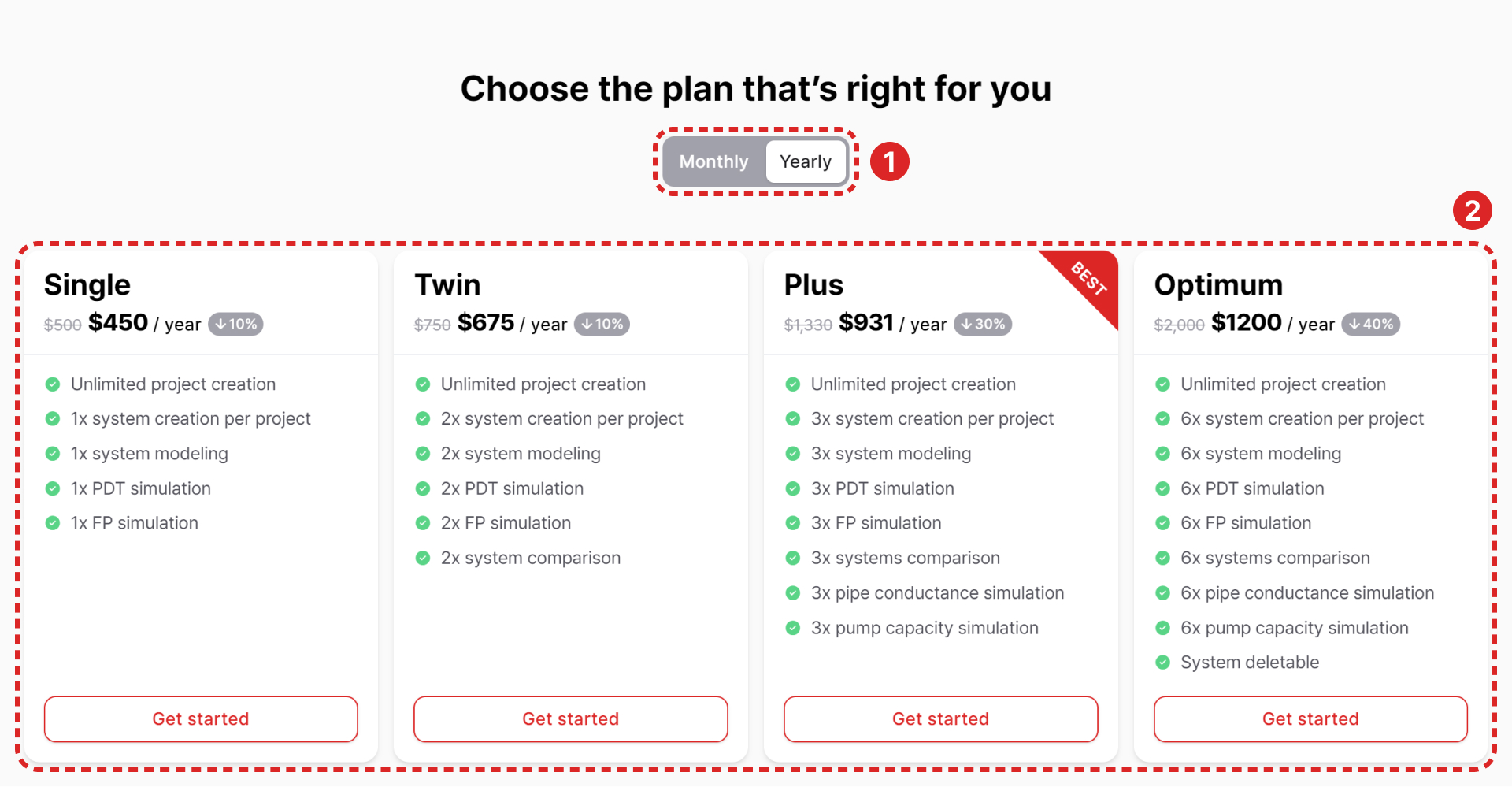

Plan Subscription
- Select monthly or yearly subscription
- Select the plan you want and subscribe
- Select from Single, Twin, Plus, or Optimum plans → See Pricing page.
- If you want to use a credit card registered in South Korea, You can pay after change language to KOR on the top-right.
- Monthly and Yearly are subscription-type services.
- Recurring payment stops when unsubscribe.
- If the recurring payment is not made, payment attempts will be made for 3 days at 1-day intervals, and if payment is not made within 3 days, the recurring payment may be terminated due to payment failure.

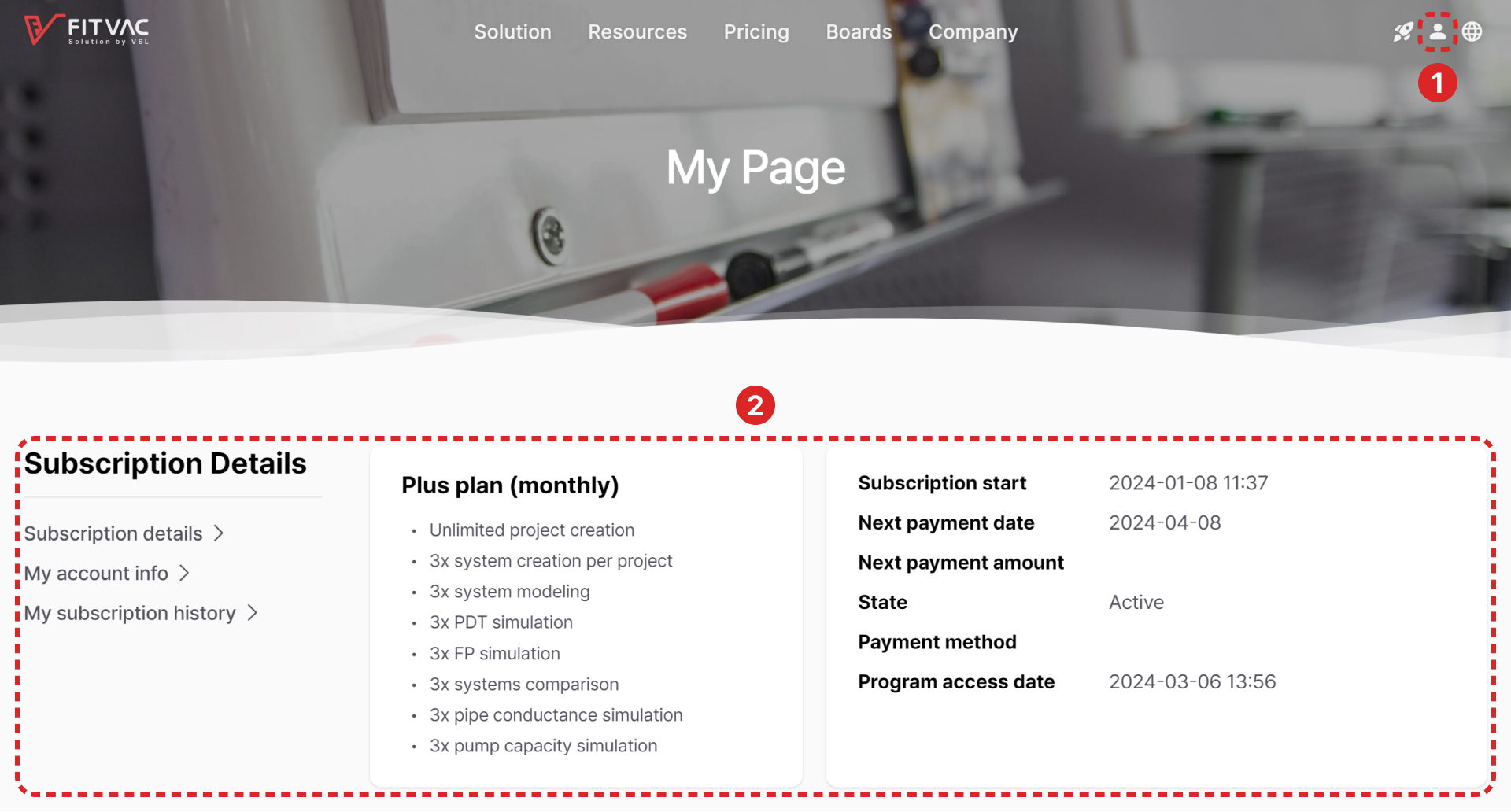

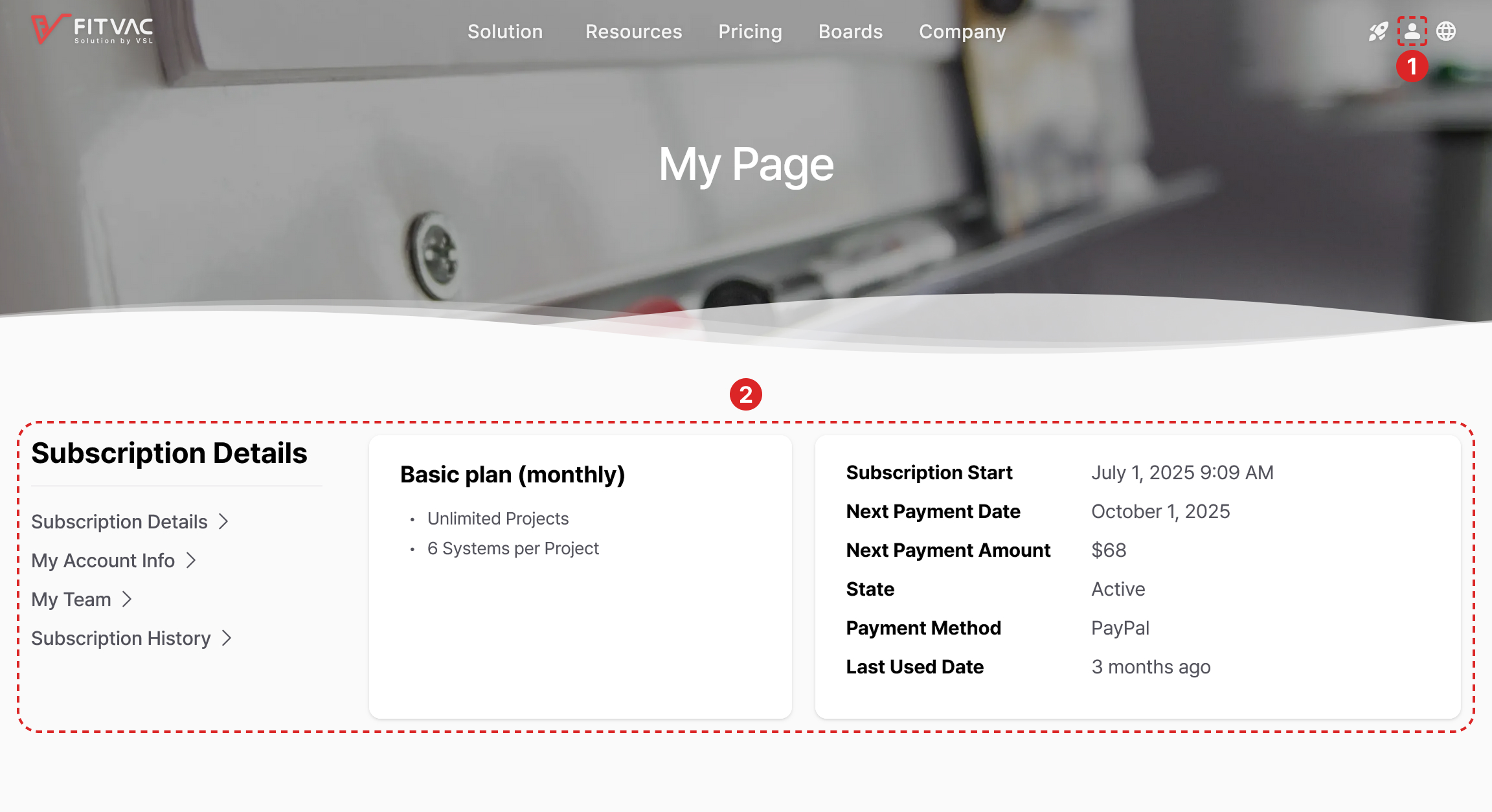

My Plan
- Sign in and go to My Page
- Plan currently in use
- View the user's current plan in "My subscription history" in My Page.
- Click the "View detail" button to see payment receipts in detail.
- Click the "Unsubscribe" button to unsubscribe.
3D Mode & Quick Mode

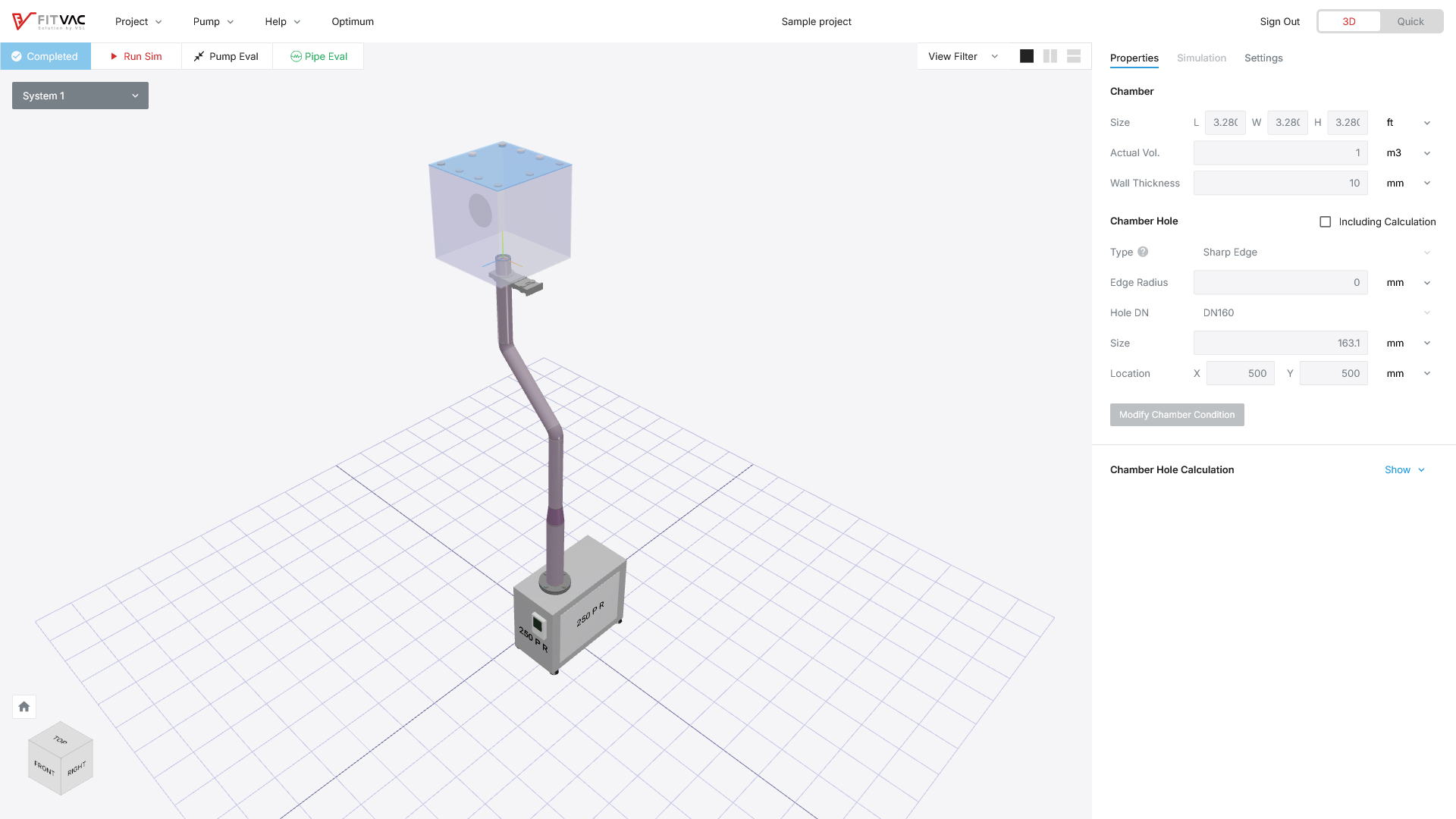

3D Mode
- Vacuum system configuration with 3D modeling
- Configure chamber, piping and pump on a three-dimensional screen
- Serial piping configurations - available
- Parallel piping configurations - unavailable
- Vacuum performance simulation
- Simulation provided: Pump down time, Throughput, Conductance, Effective pumping speed
- View 3D modeling and simulation on one screen simultaneously
- Pipe conductance evaluation & Pump capacity evaluation
- Display the pipe conductance as color temperature to identify low conductance points and provide improvement guide
- Multiple simulation results evaluate whether pump capacity matches vacuum requirements

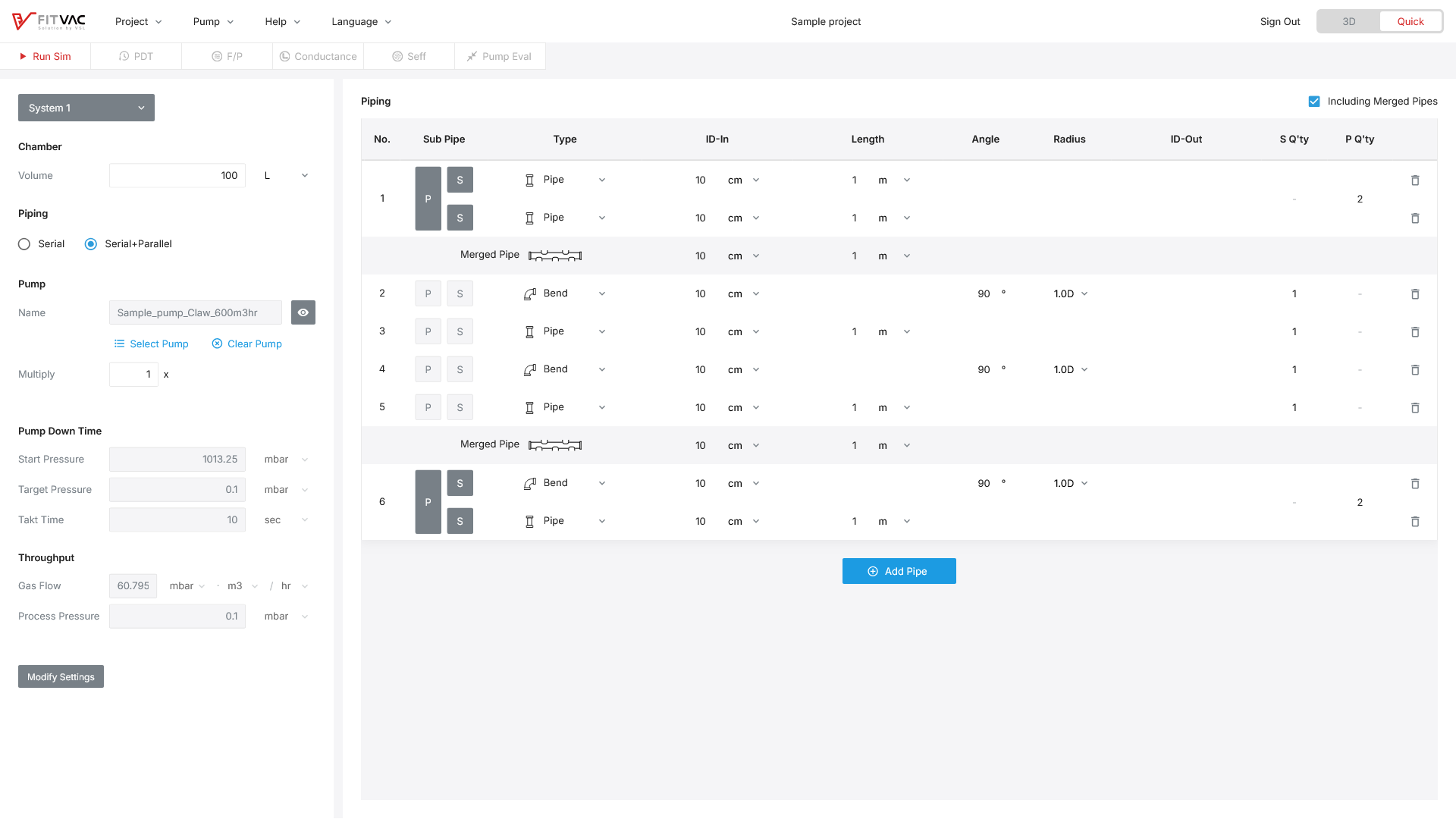

Quick Mode
- Vacuum system configurations with numerical input
- Configure chamber, pipe, and pump with numerical input
- Serial/Parallel piping configurations - available
- Vacuum performance simulation
- Simulation provided: Pump down time, Throughput, Conductance, Effective pumping speed, Pump capacity evaluation
- Pump capacity evaluation
- Multiple simulation results evaluate whether pump capacity matches vacuum requirements
3D Mode vs. Quick Mode
| Features | 3D mode | Quick mode |
|---|---|---|
| Simulation (PDT, F/P, C, Seff) |
check | check |
| Pipe conductance evaluation | check | close |
| Pump capacity evaluation | check | check |
| Piping configuration | Serial | Serial+Parallel |
| 3D visualization | check | close |
| Gate/Angle valve | check | close |
- 3D and Quick mode are separate programs, projects are not compatible.
- Pump file and Pump data file are shared in 3D and Quick mode.
