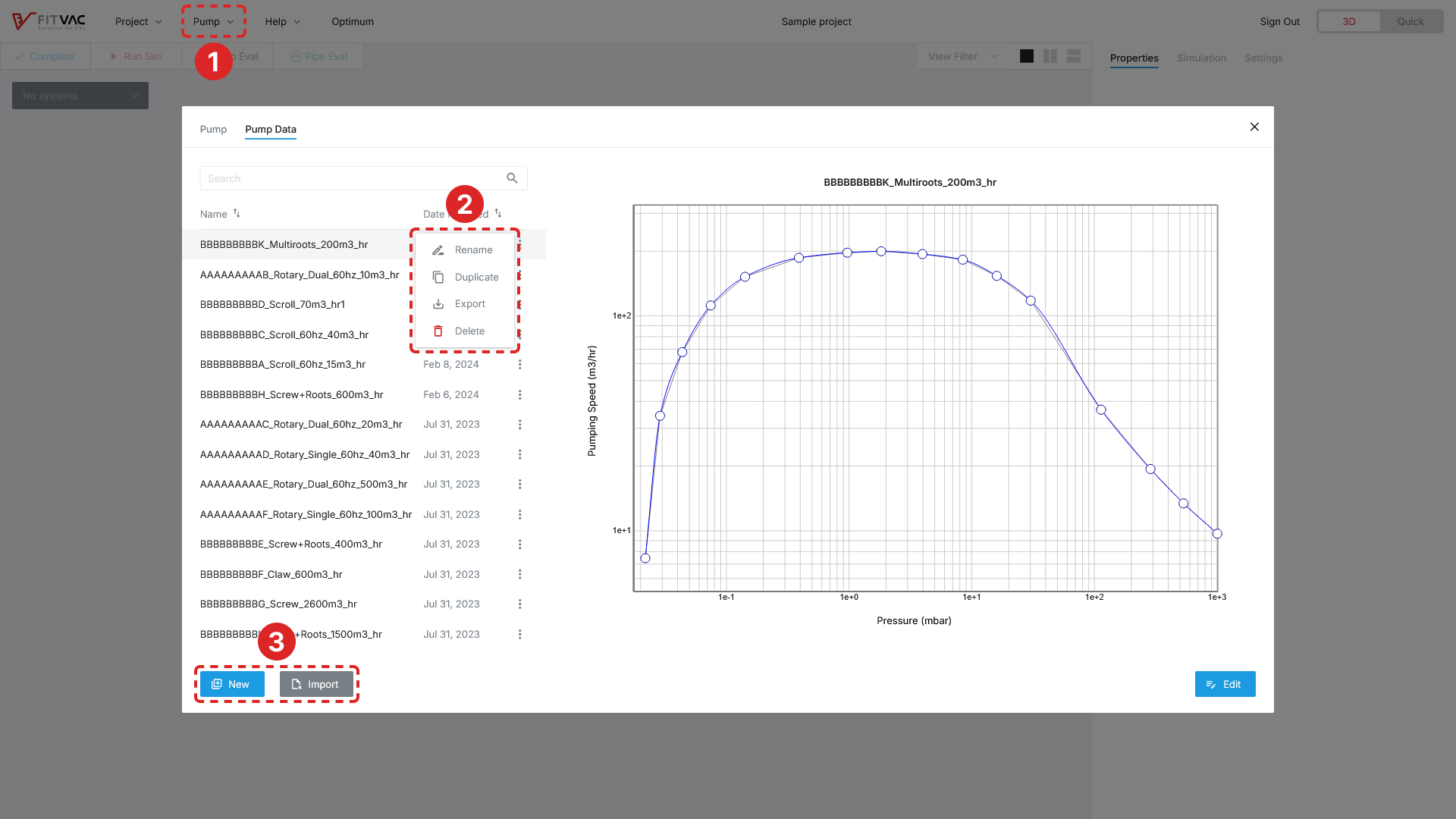

Pump Data

Input pump data file name
- Only Latin, numeric and special characters can be entered
- Enter up to 50 characters
- Pump data file name cannot be duplicated

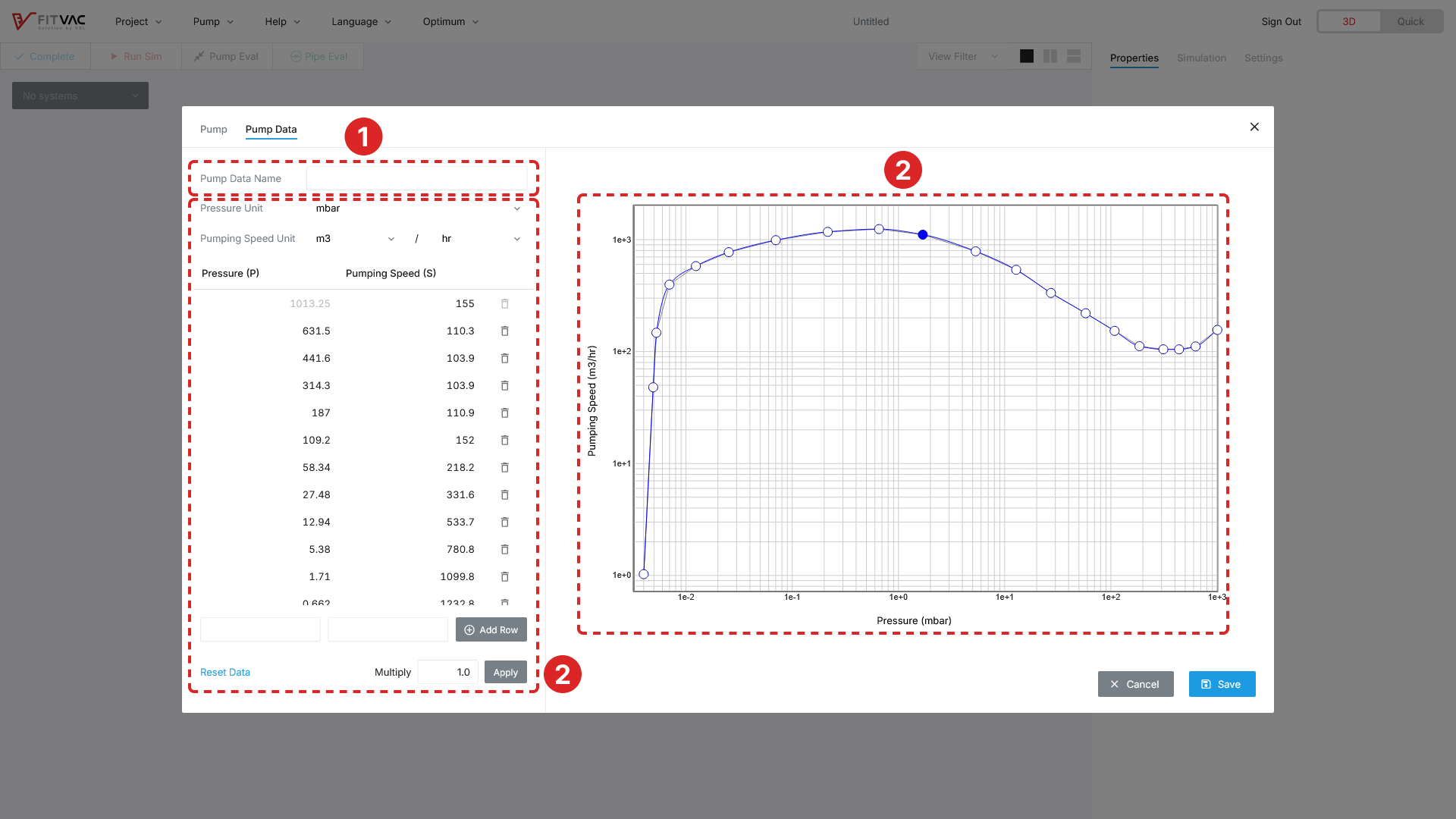

Input & edit pump data
- Pump data can be saved with a minimum of 10
- Up to 50 points can be entered
- Pumping speed value at atmospheric pressure must be included
- Data values can be adjusted by moving the display point up or down on the chart
- Data are sorted in ascending order by pressure
- Press the add_circle Add Row button to add a Pressure and Pumping Speed row
- Press the delete button to delete a row

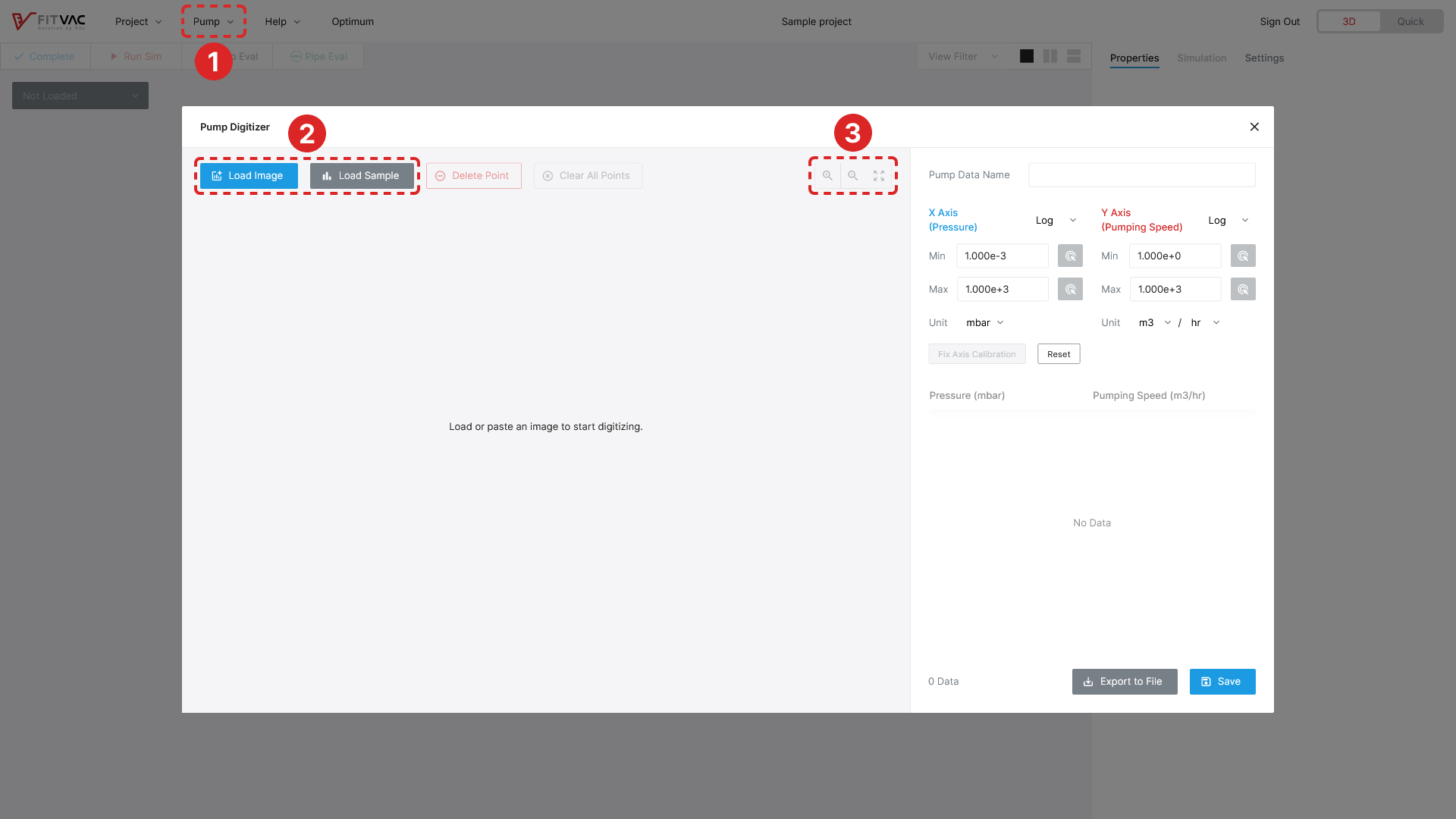

Extract pumping speed data from pumping speed images
Take a screenshot of pumping speed data images from vendor's website, catalog, manual, brochure, etc. or save them as picture files
Saved files can be converted to pump data file (.fpd) using Digitizer

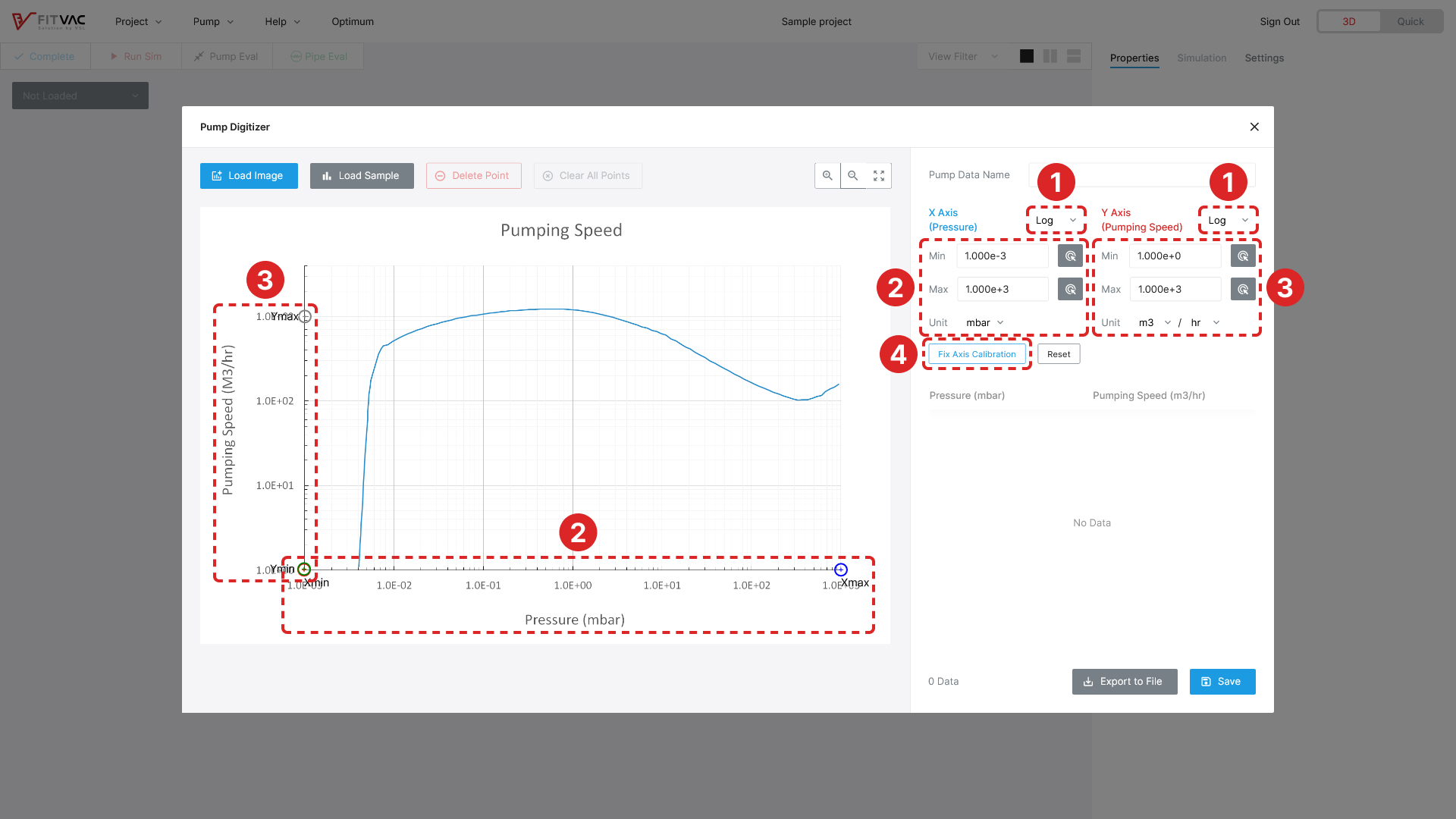

Axis Calibration
- Both the X and Y axis default to Log scale, which can be changed to Linear scale by clicking
  - If the settings of log scale and linear scale are different from the scale on the image, incorrect data will be extracted
- To avoid errors, it is recommended to check that the extracted data values have the same values as those on the image before use
Enter the minimum and maximum values for the x axis and click the ads_click button to set the points of those minimum and maximum values on the chart using crosshairs
- Select the same unit for the x axis as the units shown at the bottom of the chart
Enter the minimum and maximum values for the y axis and click the ads_click button to set the points of those minimum and maximum values on the chart using crosshairs
- Select the same unit for the y axis as the units shown at the left side of the chart
Click the Fix Axis Calibration button to fix the axis calibration

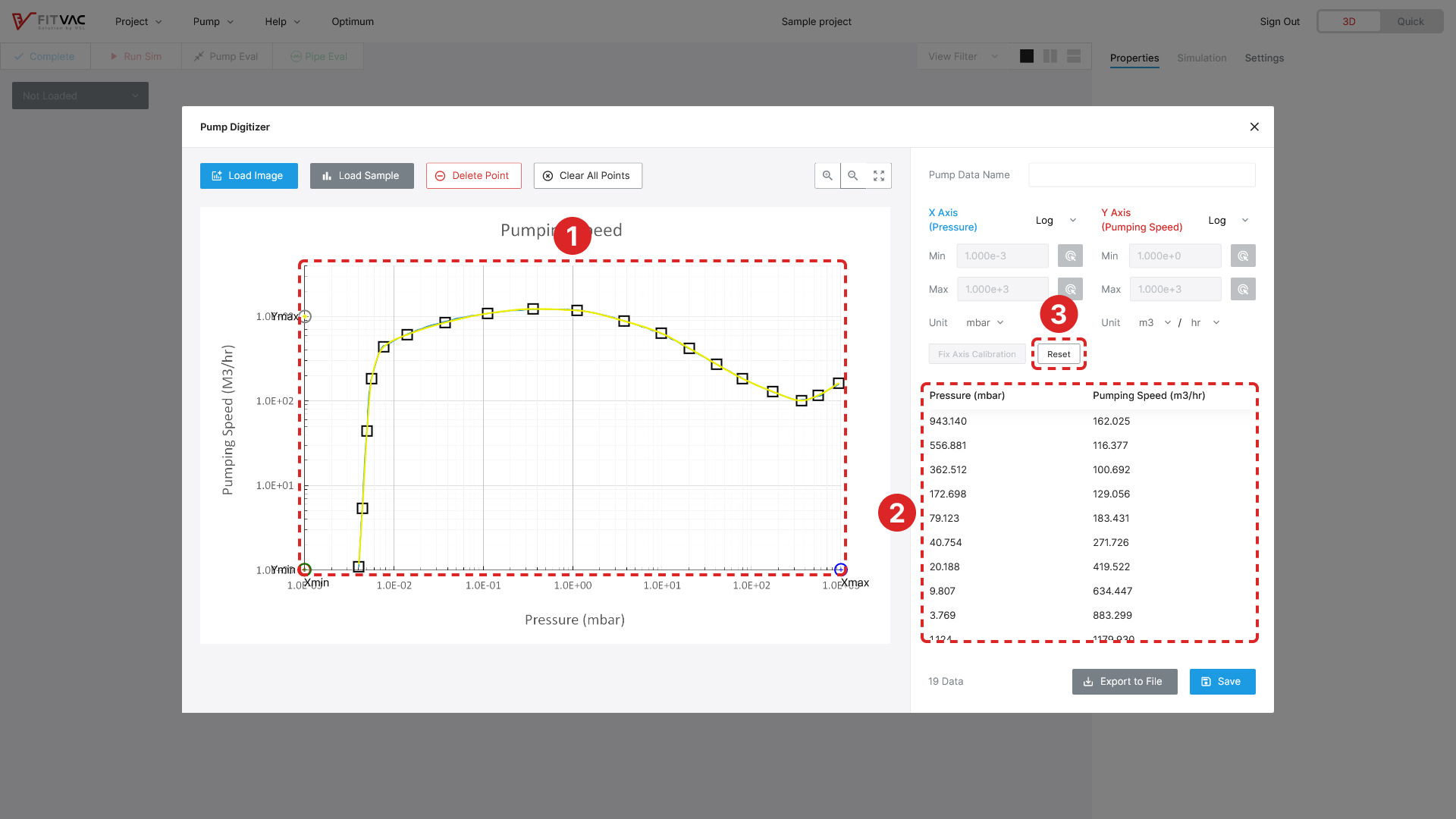

Click the points along the chart on the pumping speed image to generate pumping speed data (up to 50 points)
- Point Editing
  - Delete, move, and add
- Recommendation and others:
  - 20 points or more recommended (at least 10 points needed to save)
  - Including the starting and ending data of the pumping speed
  - Including the atmospheric pressure and corresponding pumping speed data
  - Pump data file (.fpd) can be saved and opened in the pump data list for editing
Pressure & pumping speed data table
- The number of data created displayed on the bottom of the table
- Data are sorted in ascending order by pressure
Click the Reset button to delete all data points and initialize settings
- When reset the settings, turn back to graph axis setting → See Digitizer – Axis Setting

Data deletion
- Click the do_not_disturb_on Delete Point button to activate the data deletion mode
- Data can be deleted by clicking on the point you want to delete
- After data deletion, Click the do_not_disturb_on Delete Point button to inactivate the data deletion mode
- Click the cancel Clear All Points button to delete all data
Input pump data file name
- Only Latin, numeric and special characters can be entered
- Enter up to 50 characters
- Pump data file name cannot be duplicated
Pump data saving
- download Export to File: Export the pump data file (.fpd)
- save Save: Save the pump data file (.fpd) to your account on the web

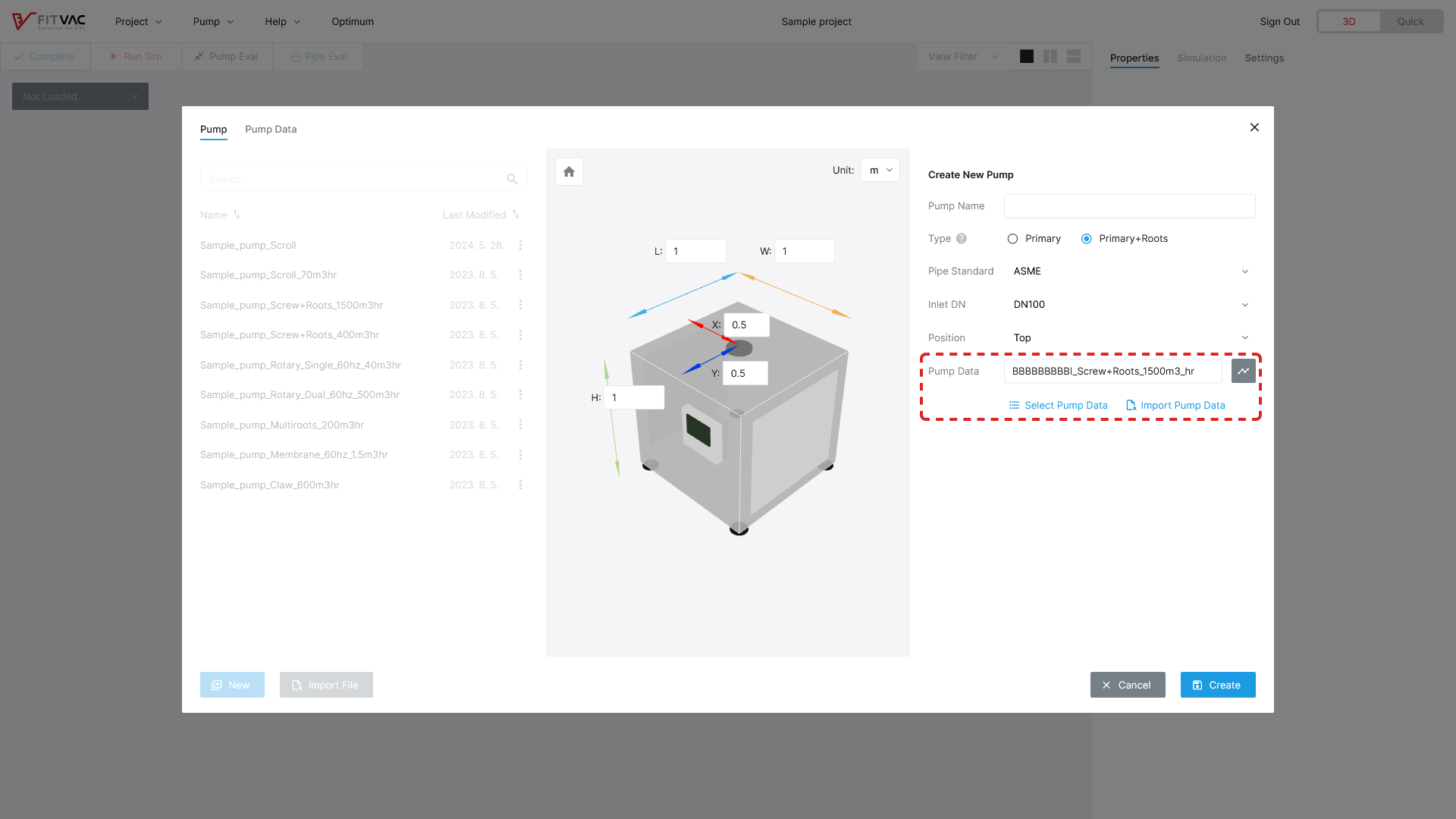

Pump data use when creating a pump
- Click the format_list_bulleted Select Pump Data button to select pump data file from the list
