Quick Mode Project

Project Management

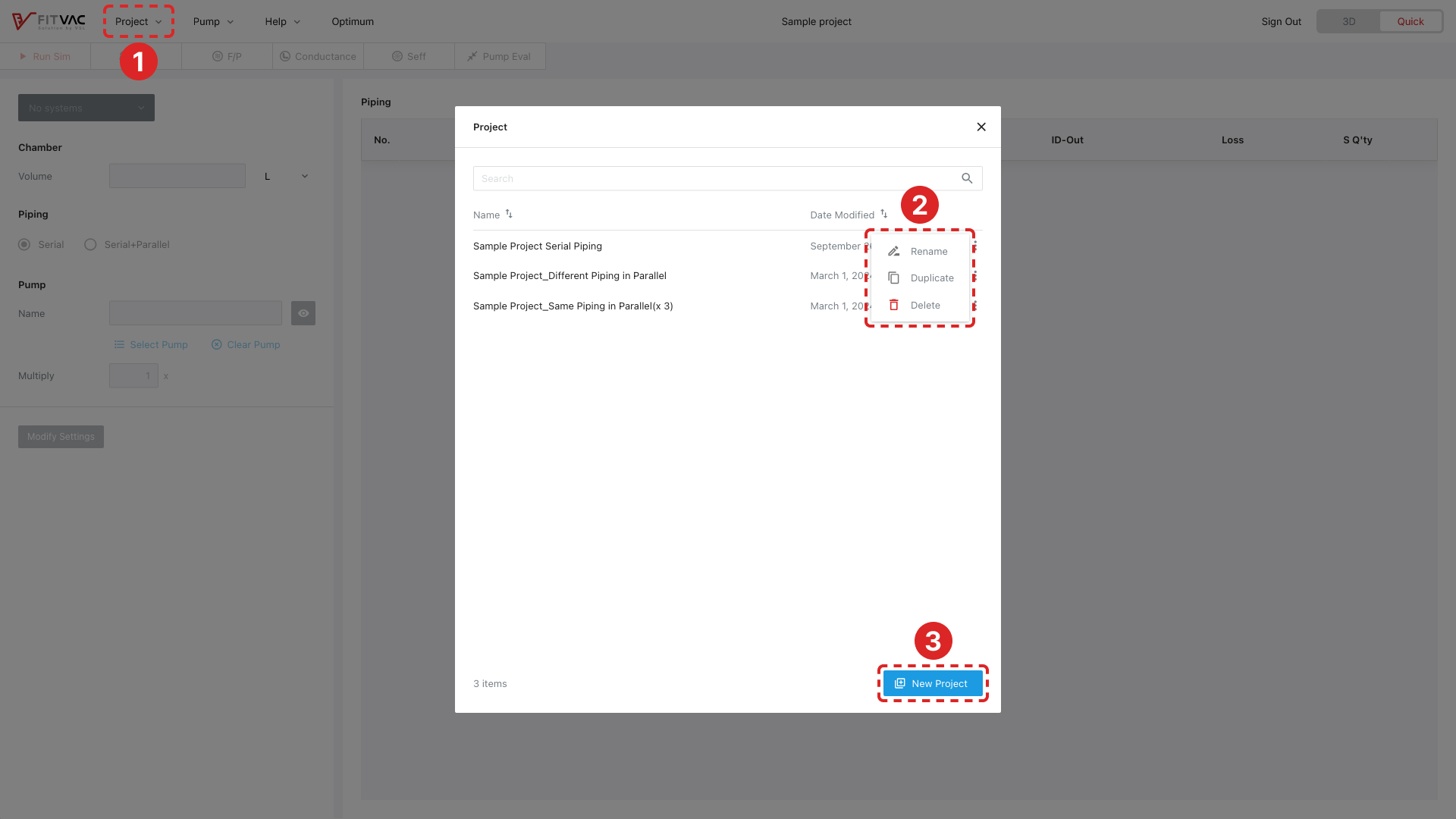

  1. Select the "New…" in "Project" menu
  2. Rename, duplicate, delete the project
  3. Create a new project

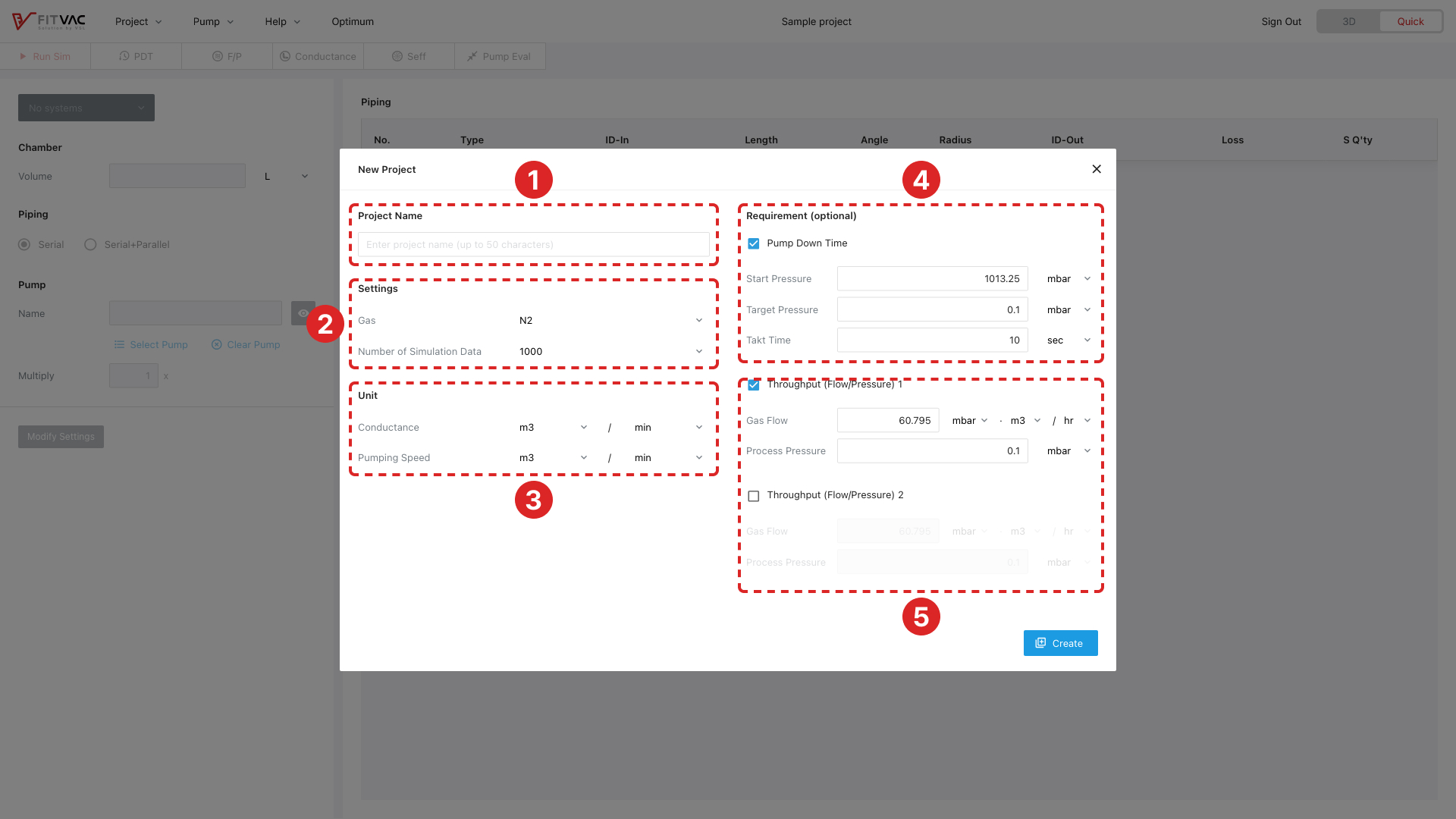

Project Creation & Set the Requirements

  1. Input the project name
    • Only Latin, numeric, and special characters can be entered
    • Enter up to 50 characters
    • Project name cannot be duplicated
    • Not compatible with 3D mode
  2. Settings for the Gas, Pipe Standard, No. of Simulation Data
    • Gas: N2 (Nitrogen), Air
    • Pipe Standard: ASME, ISO/EN, KS/JIS
    • No. of Simulation Data: Set the number of data appeared during the simulation (default: 1000, min.: 600, max.: 5000)
  3. Unit
    • Conductance: Set the units applied when simulating conductance
    • Pumping Speed: Set the units applied when simulating effective pumping speed (Seff)
    • Pipe Length: Set the unit applied when evaluating pipe conductance (Disabled in Quick mode)
  4. Pump down time requirement
    • Uncheck the Pump Down Time checkbox if not required
    • Start Pressure: Chamber start pressure at (default: ATM)
    • Target Pressure: Chamber target pressure want to reach
    • Takt Time: Requested time from start pressure to target pressure
  5. Throughput requirement
    • Uncheck the Throughput (Flow/Pressure) checkbox if not required
    • Gas Flow: Gas flow injected to the chamber
    • Process Pressure: Requested chamber pressure under gas flow
    • Throughput (Flow/Pressure) 2: Additional requirement of throughput
