Quick Start

Brief Guide to Start Program Quickly

FitVac™ is always the latest version.

Quick Start Manual Image

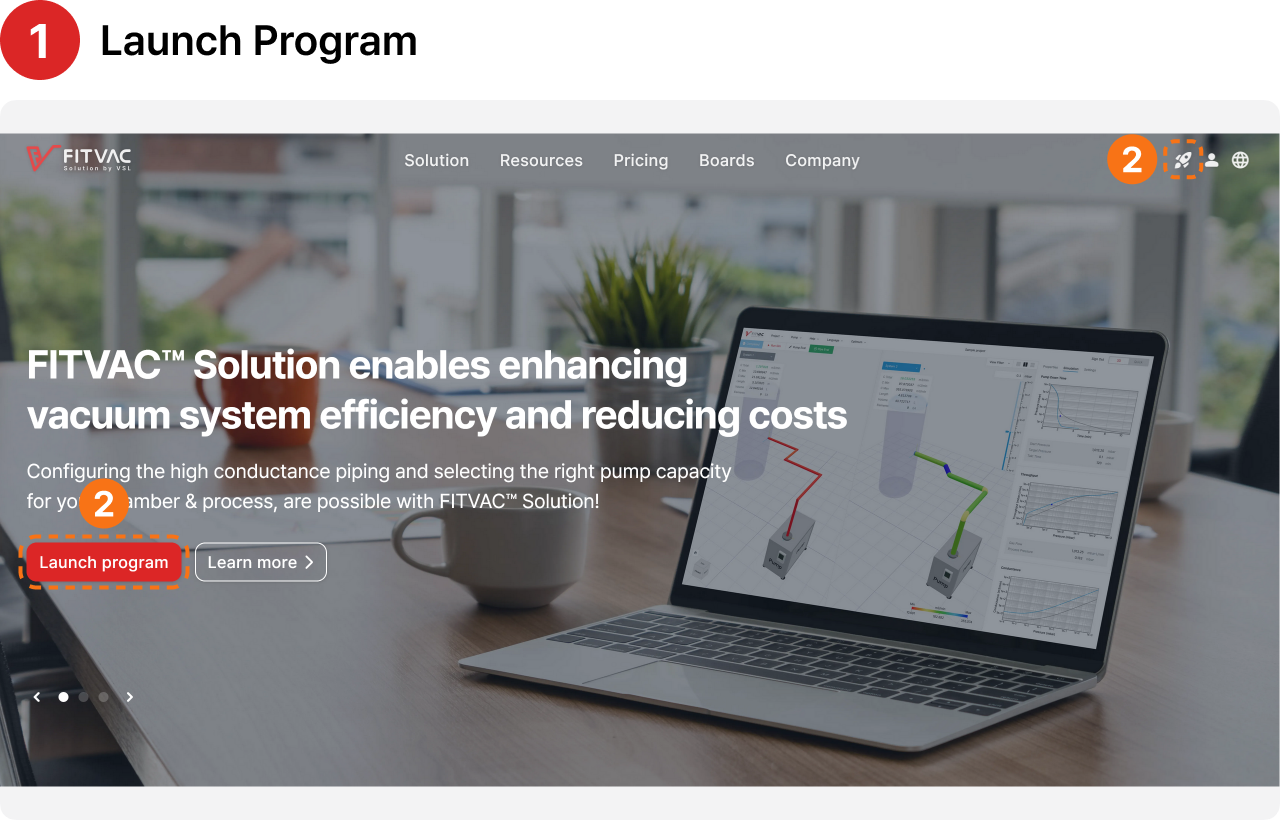

  1. Sign in
    • If you received an email about the free trial after signing up, the "Launch program" button will be activated when you sign in
  2. Program launch
    • Click the "Launch program" button to launch the program
Quick Start Manual Image

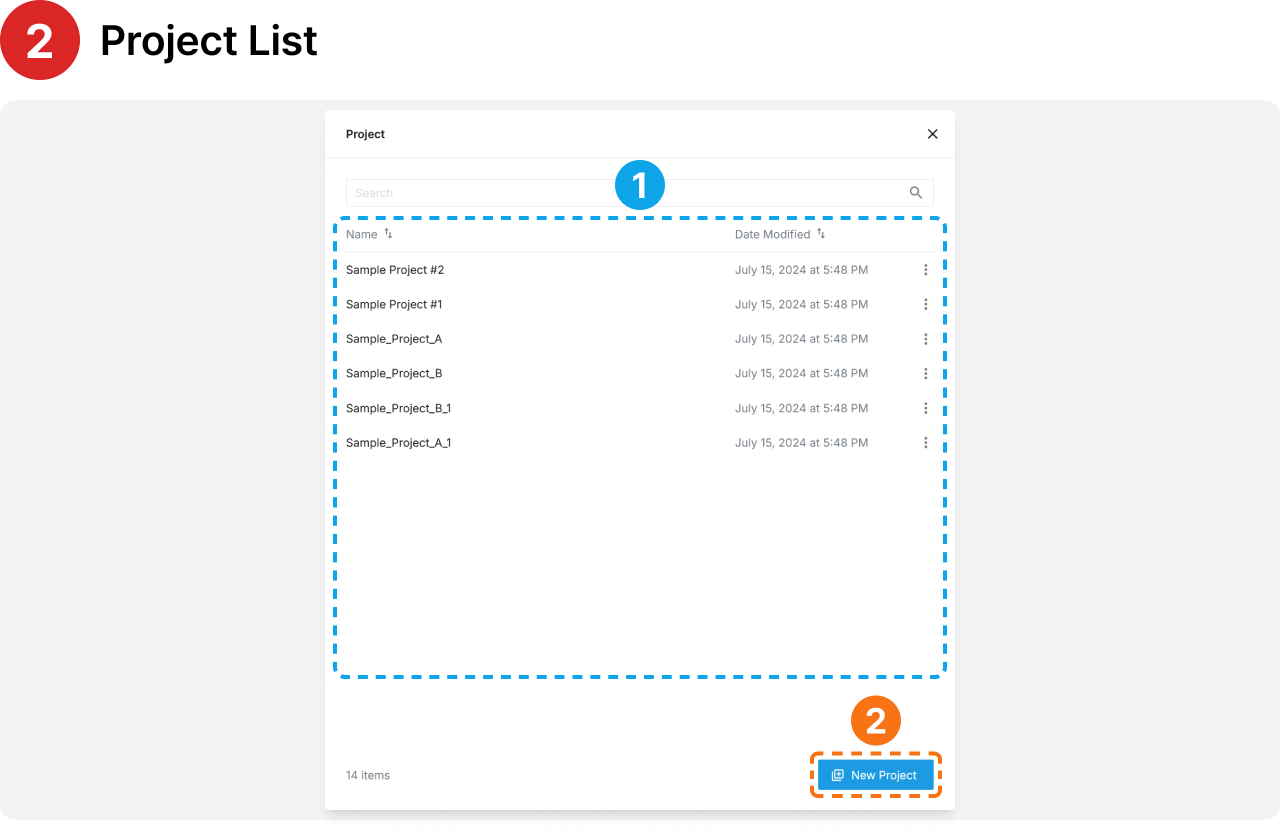

  1. Open a project
    • You can open it by selecting a project saved in the Project list or by importing a project file saved in local
  2. Create a new project
    • Click the "New Project" button to create a new project
Quick Start Manual Image

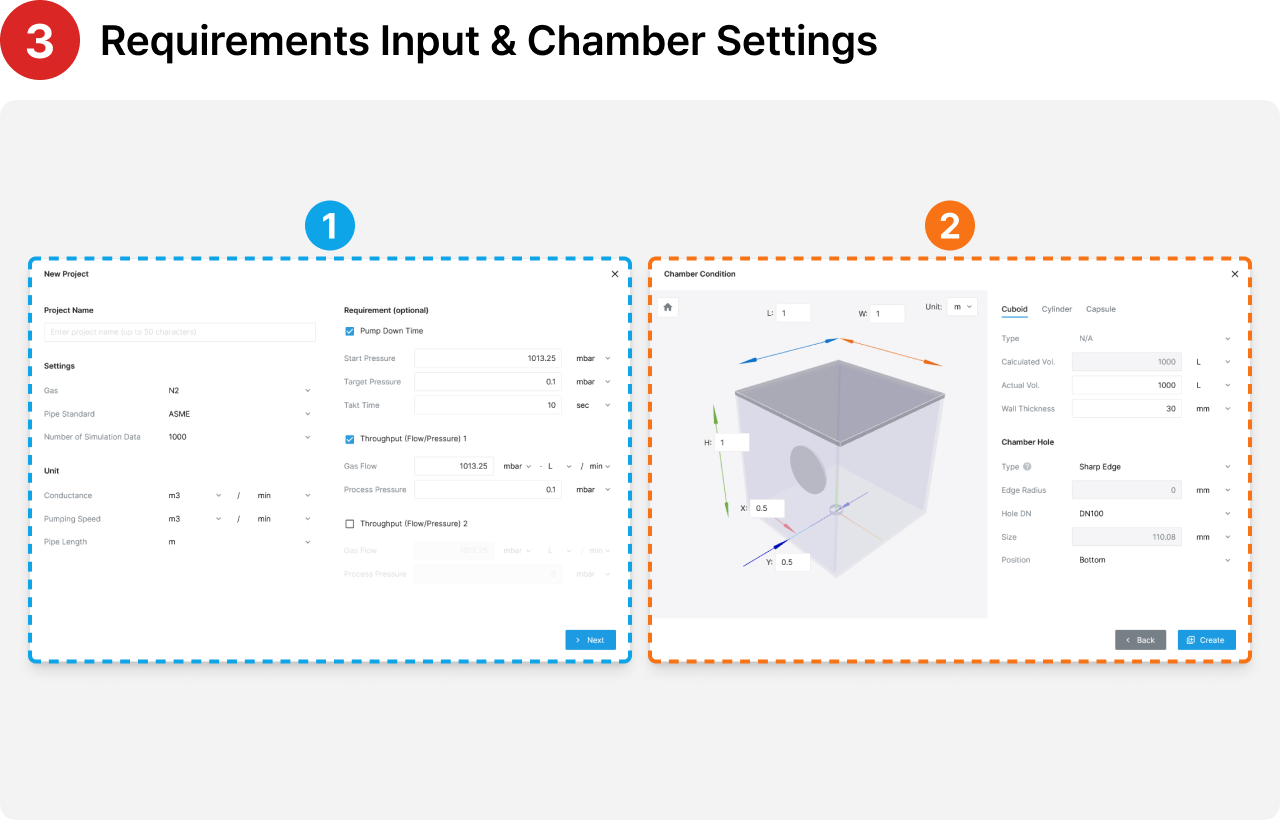

  1. Enter the project name and requirements
    • Select the gas
    • Enter the temperature
    • Select the pipe standard
    • Select the number of simulation data
    • Select the units
    • Enter the requirements for pump down time, throughput, and conductance
  2. Set up the chamber
    • Enter chamber conditions from chamber type to hole position
Quick Start Manual Image
  1. System modeling
    • The chamber you set up is placed on a grid in 3D space

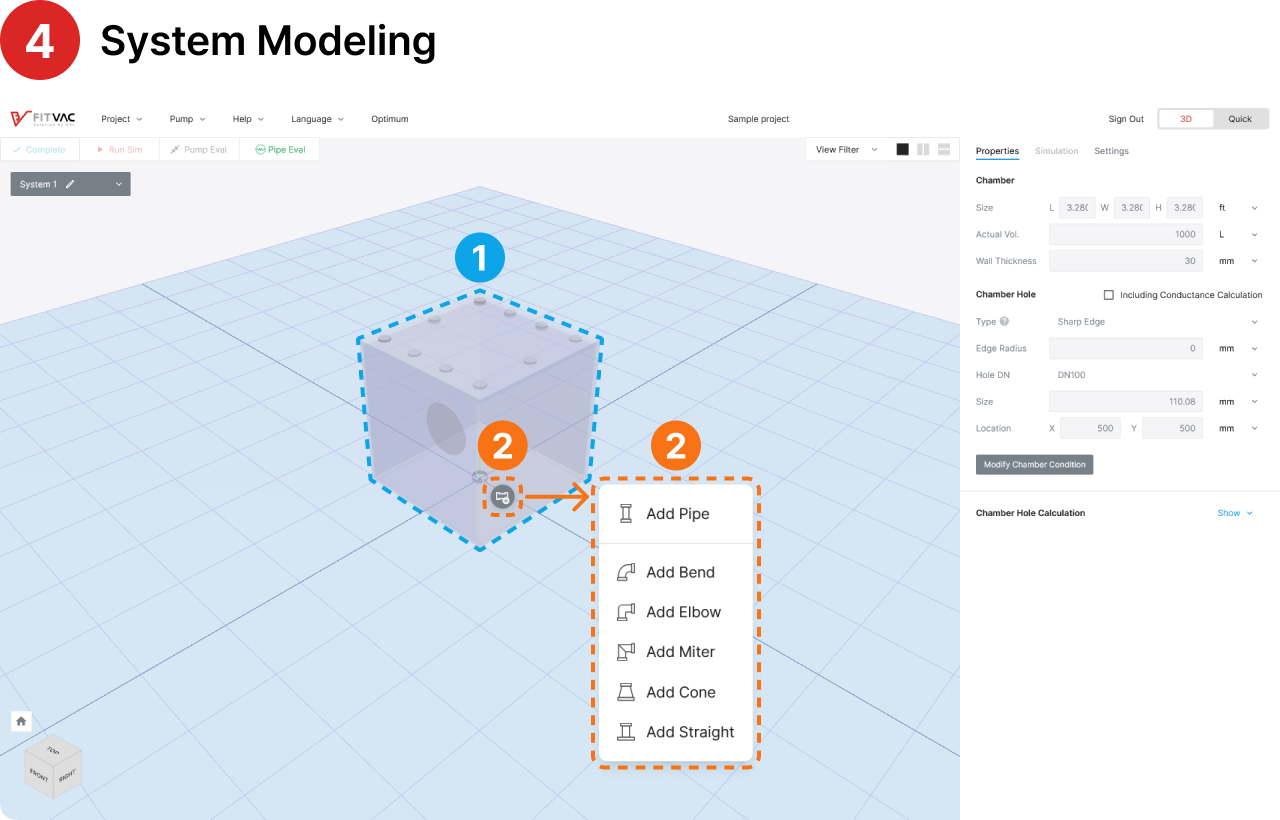

  2. Pipe modeling
    • Click the pipe icon button to expand the modeling menu
    • Select a pipe element to configure the pipe
    • Enter additional information for each pipe in the Properties tab on the right
Quick Start Manual Image

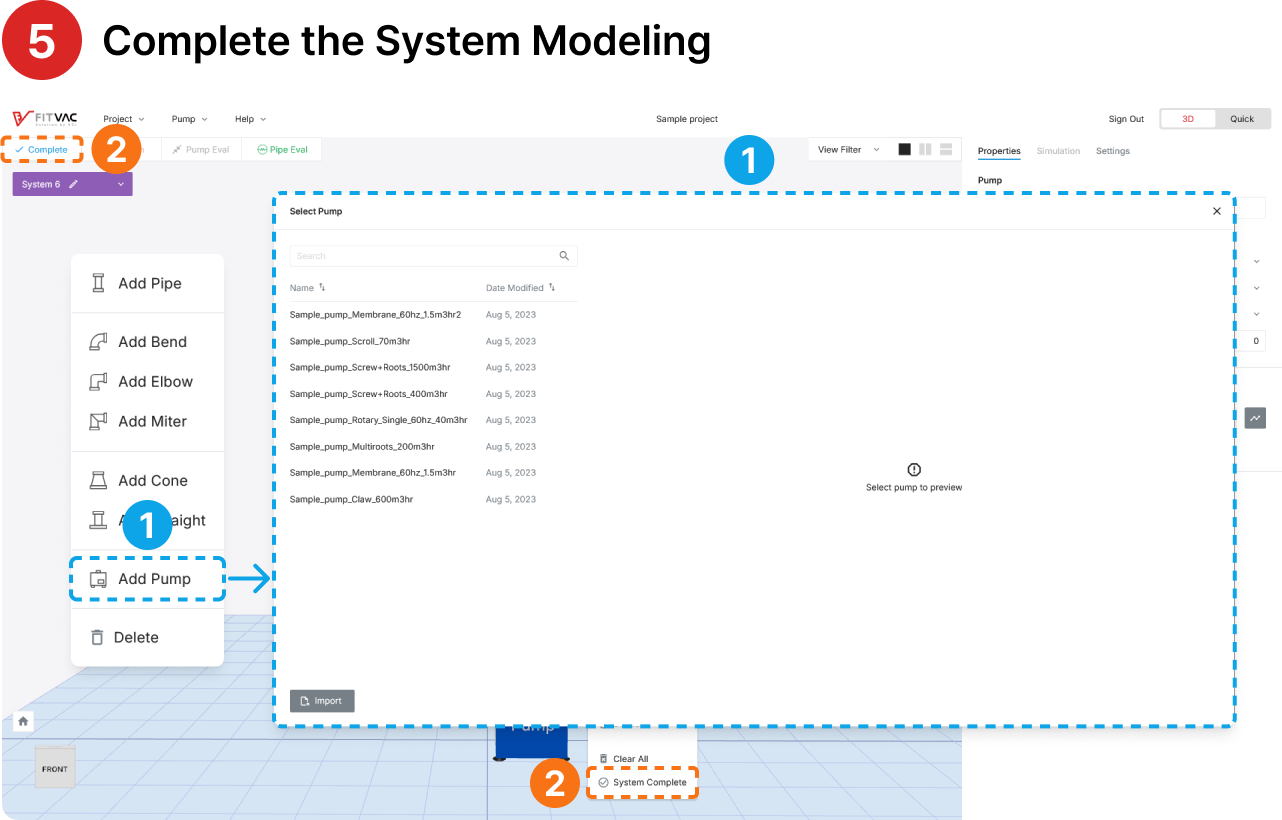

  1. Pump Modeling
    • The pump is uploaded by clicking "Add Pump" to select from the list
    • The pump can be used by selecting a sample pump or creating your own
    • Modeling is complete when the system is configured with a chamber, pipes, and a pump
Quick Start Manual Image

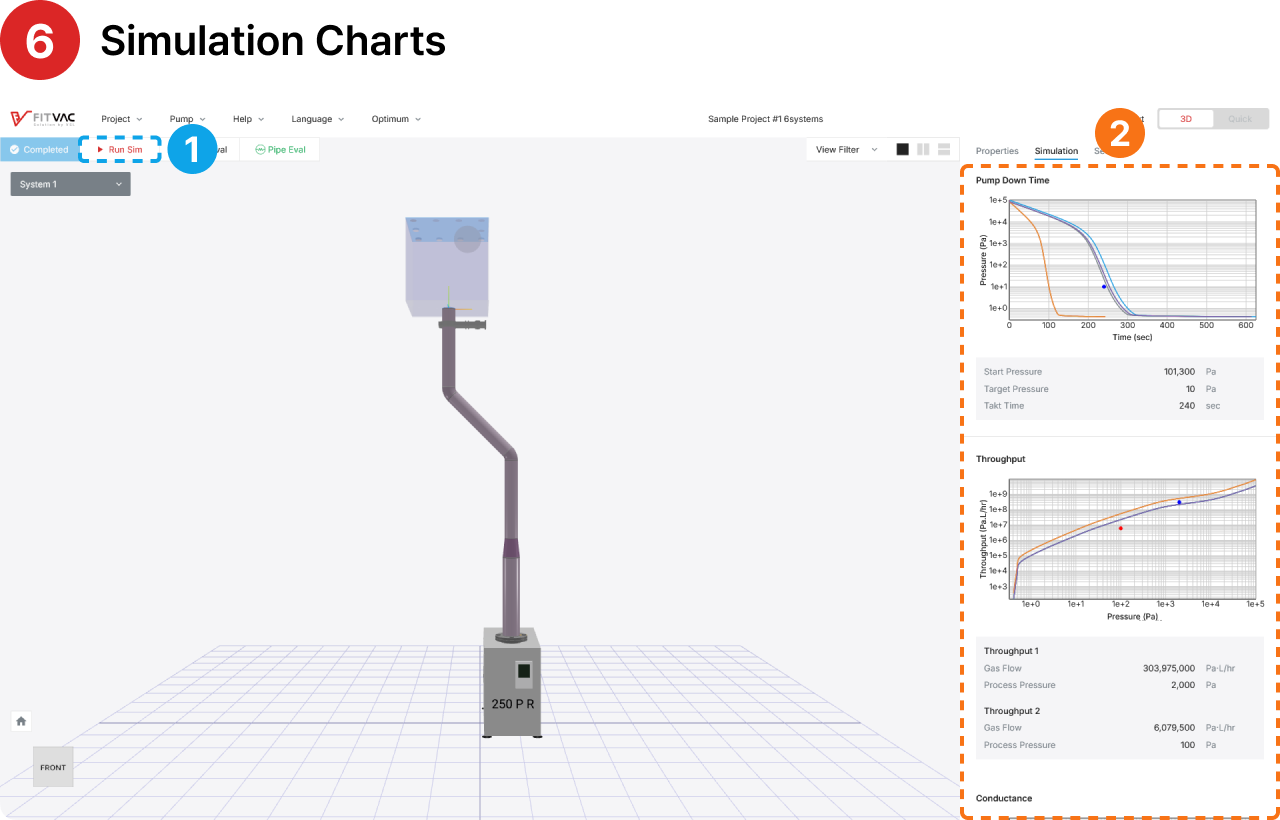

  1. Run the simulation
    • Click the "Run Sim" button to run the simulation for the completed system
  2. Simulation results
    • 4 simulation results charts are displayed on the right side of the screen (orange box)
      • Conductance
      • Effective pumping speed
      • Pump down time
      • Throughput
    • The vacuum requirement is also shown on the chart (dot)
    • Click on the chart to make it pop up and view detailed data
Quick Start Manual Image

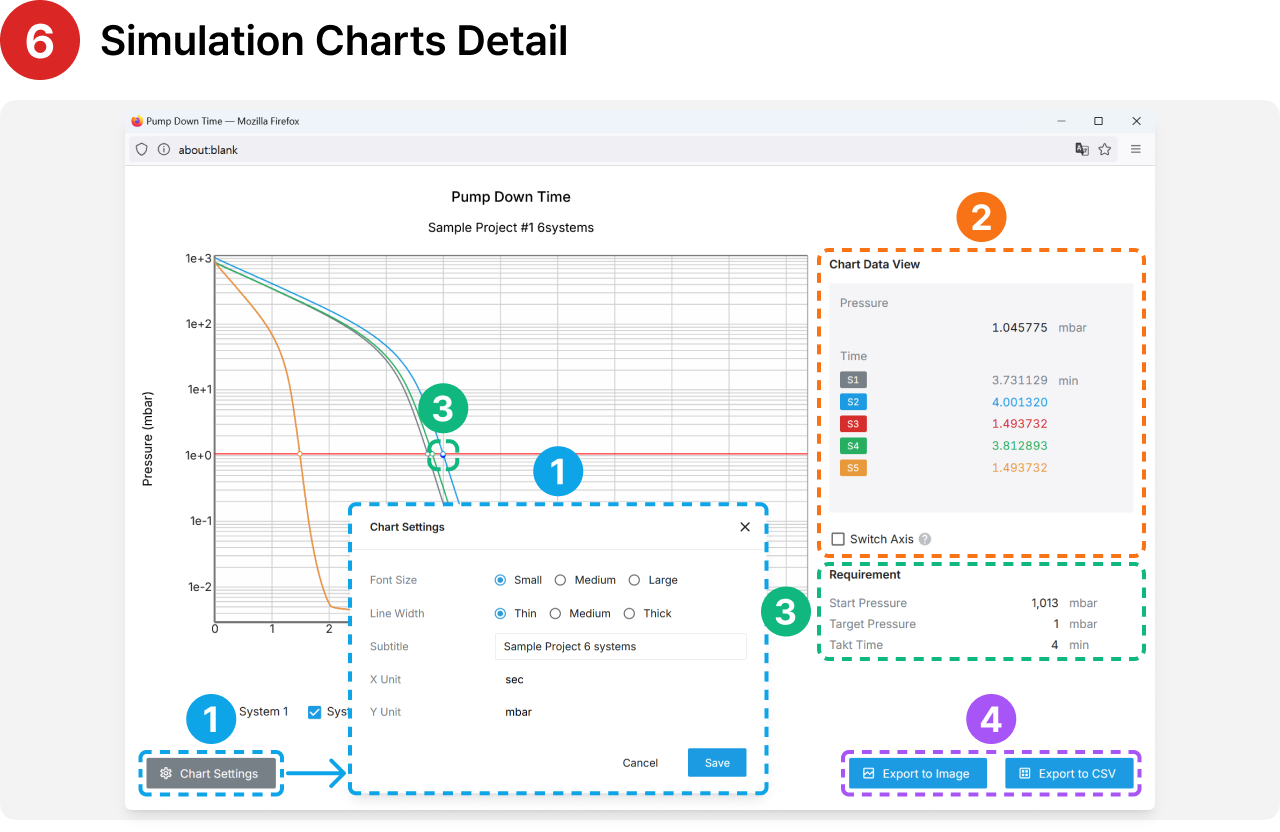

  1. Chart settings
    • You can set up the charts by clicking the "settings Chart Settings" button
      • Font size, subheading
      • X, Y axis units
  2. View simulation data
    • Select "Switch Base Axis" option to view simulation results in detail
  3. Vacuum requirement
    • Displayed on the chart as a small points(red point and blue point)
  4. Download simulation data
    • Click the "Export to Image" button to export the chart to an image
    • Click the "Export to CSV" button to export the chart to a CSV file
Quick Start Manual Image
  1. Sign in
    • If you received an email about the free trial after signing up, the "Launch program" button will be activated when you sign in
  2. Program launch
    • Click the "Launch program" button to launch the program
Quick Start Manual Image
  1. Open a project
    • You can open it by selecting a project saved in the Project list or by importing a project file saved in local
  2. Create a new project
    • Click the "New Project" button to create a new project
Quick Start Manual Image

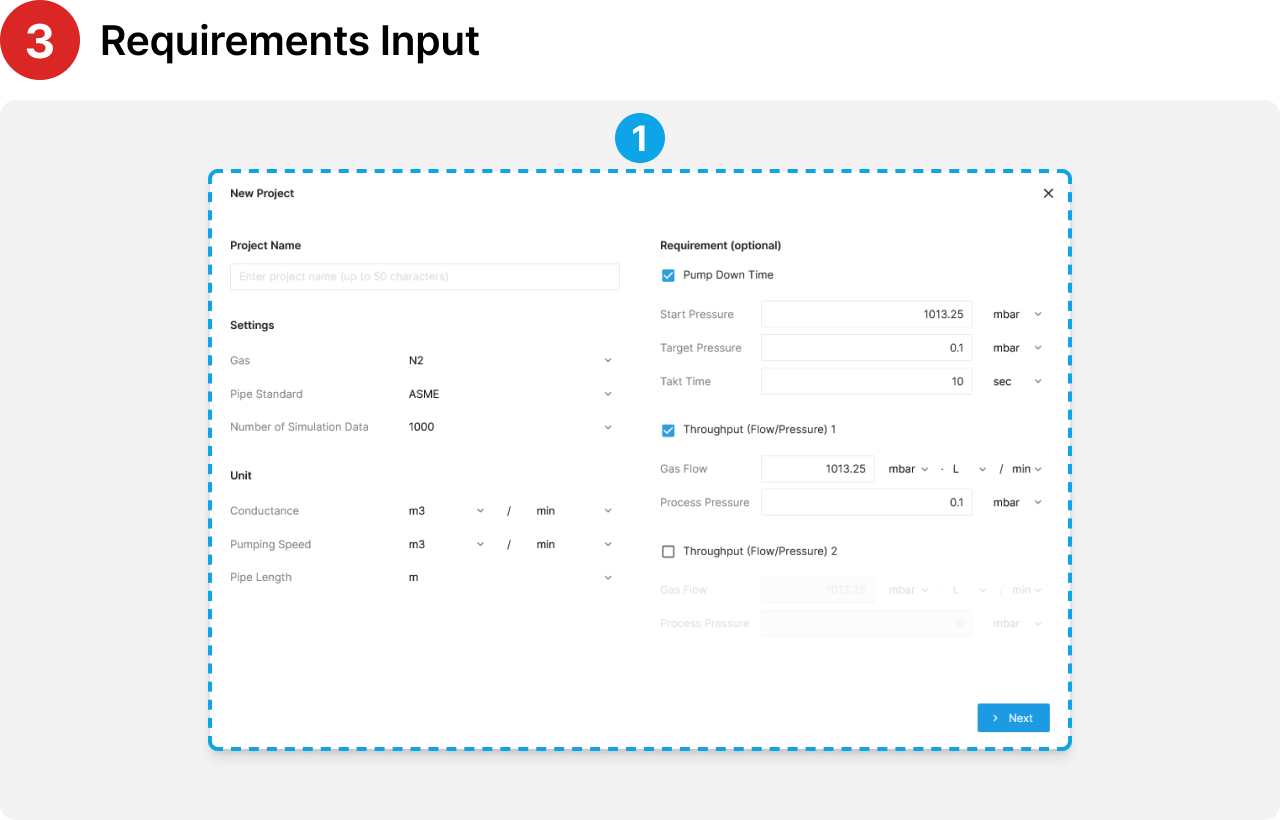

  1. Enter the project name and requirements
    • Select the gas
    • Enter the temperature
    • Select the number of simulation data
    • Select whether to use pipe losses option
    • Select the units
    • Enter the requirements for pump down time, throughput, and conductance
Quick Start Manual Image

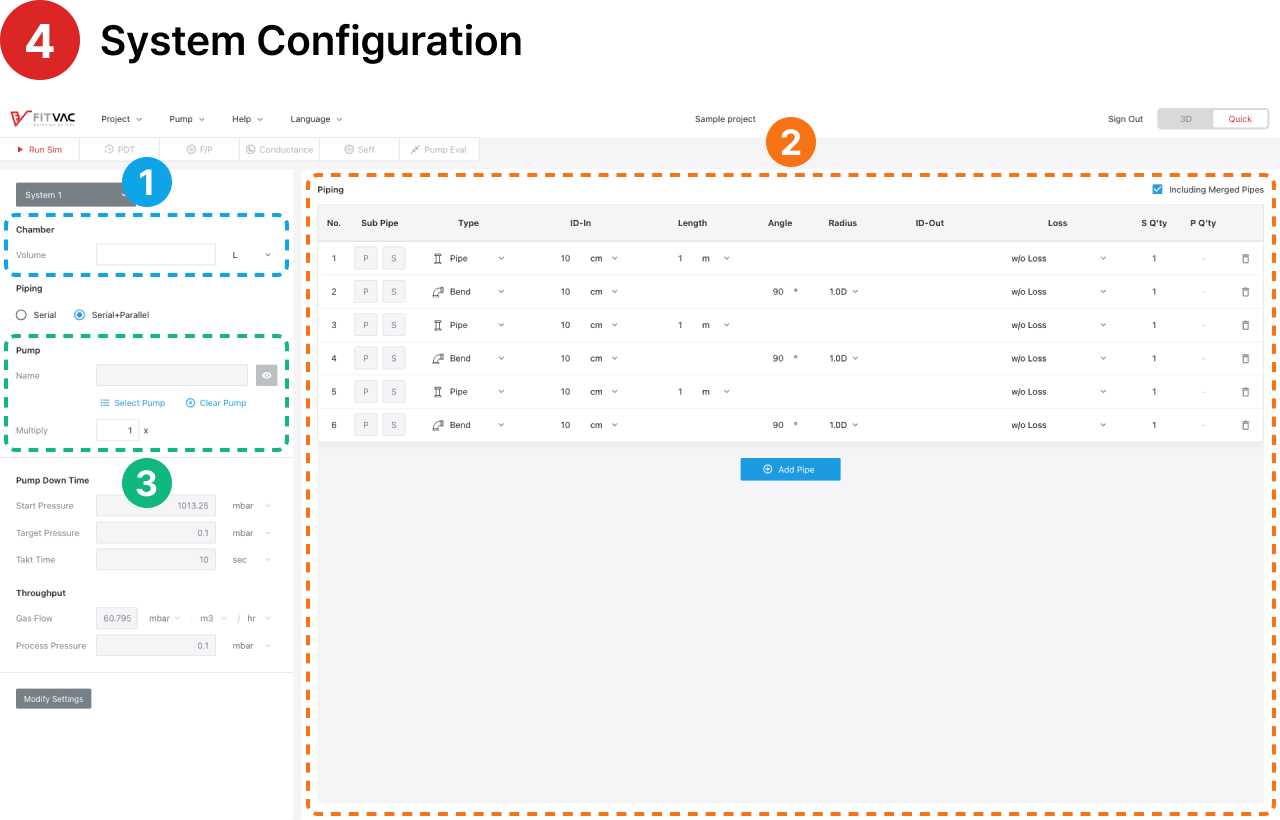

  1. Chamber configuration
    • Enter the volume of the chamber and select the units
  2. Pipe configuration
    • Click the "Add Pipe" button and "delete" button to add and delete pipes
    • Select or enter the inlet inner diameter, length, angle, radius, outlet inner diameter, etc. of the pipe
  3. Pump configuration
    • Click the "Select Pump" to select a pump from the list
    • You can choose a sample pump or create your own
Quick Start Manual Image
  1. Run the simulation
    • Click the "Run Sim" button in the project menu to run a simulation
    • Depending on the system configuration condition input, the simulatable buttons will be activated

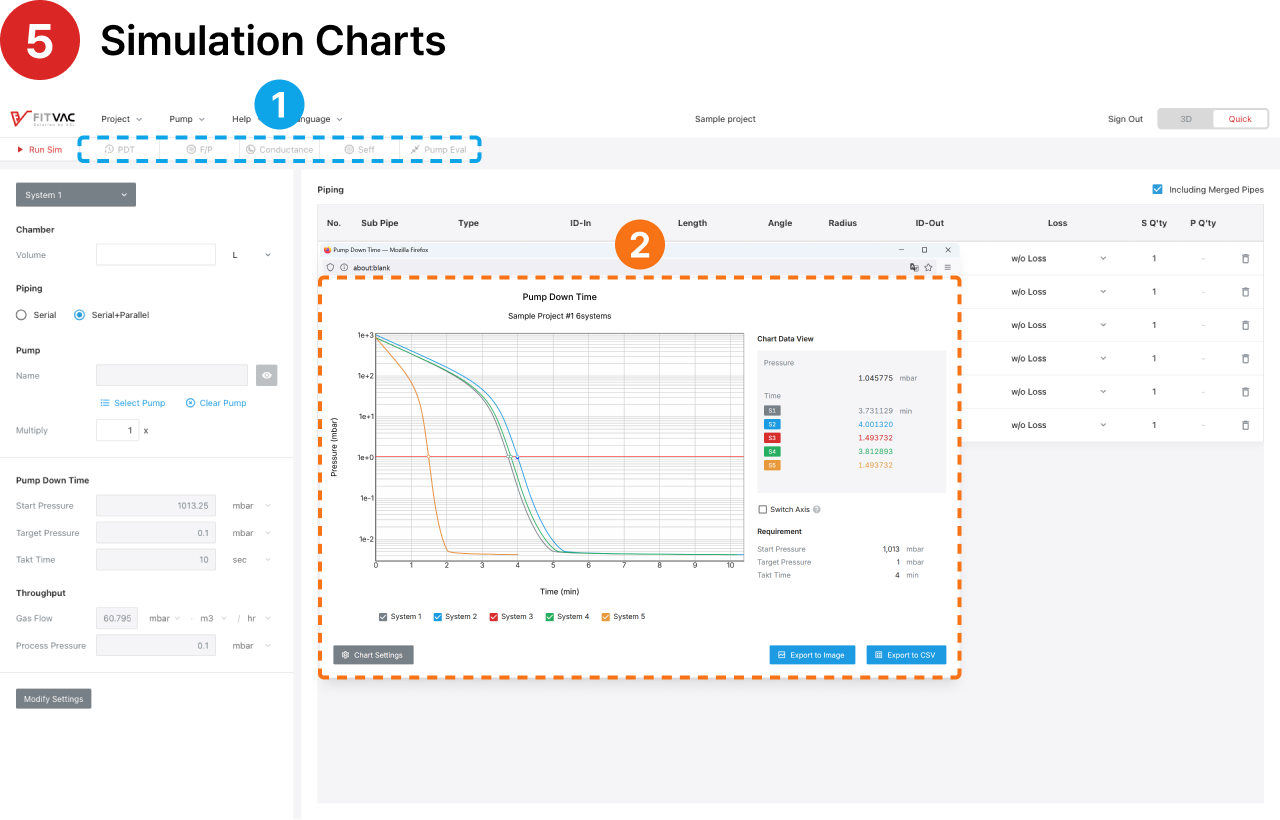

  2. View simulation results
    • Click the active button among PDT, F/P, Conductance, Seff, Pipe Eval, CapaScan™ in the project menu to display the simulation results as a pop-up
Quick Start Manual Image

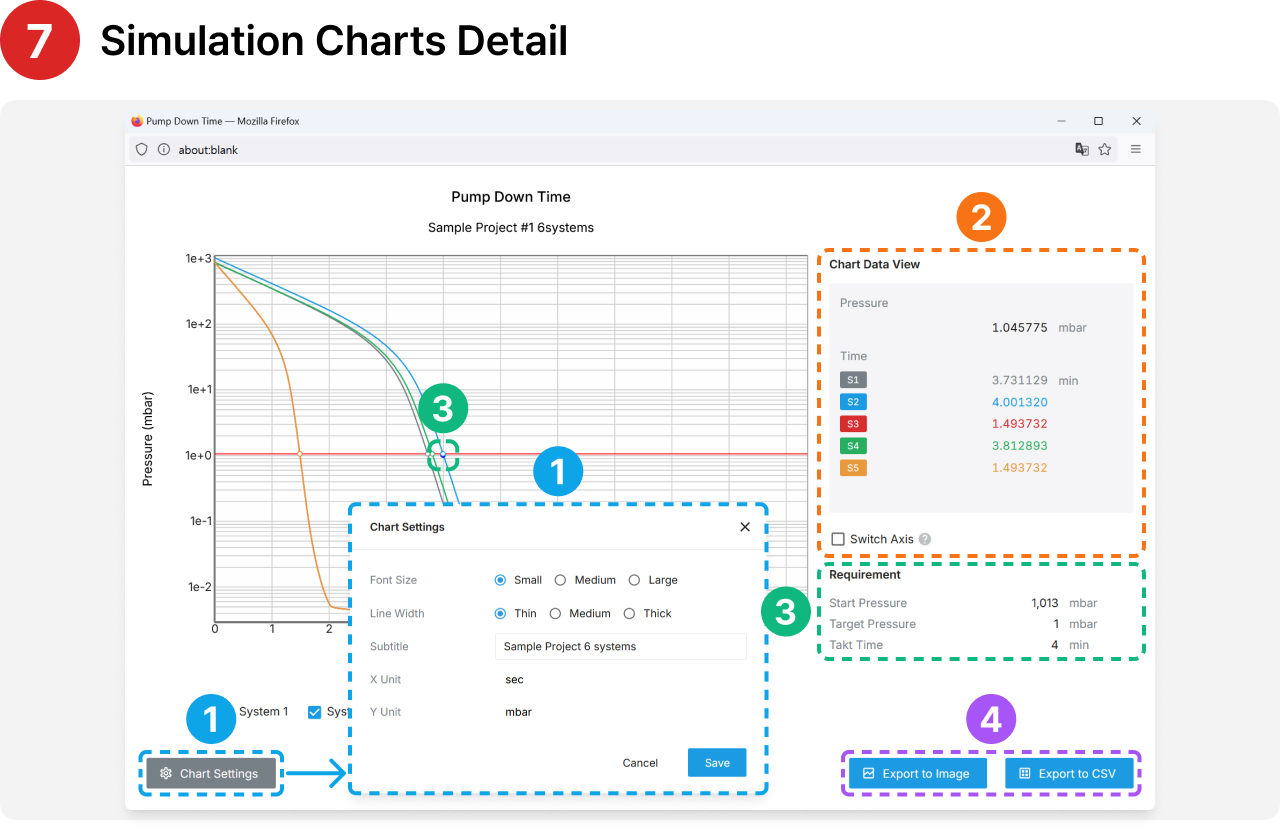

  1. Chart settings
    • Click the "settings Chart Settings" button to customize the chart to your liking
      • Font size, subheading
      • X, Y axis units
  2. View simulation data
    • Select "Switch Base Axis" option to view simulation results in detail
  3. Vacuum requirement
    • Displayed on the chart as a small points(red point and blue point)
  4. Download simulation data
    • Click the "Export to Image" button to export the chart to an image
    • Click the "Export to CSV" button to export the chart to a CSV file
